If you work with rigging, marine hardware, or lifting equipment, you’ve probably heard the term “swivel eye.” But what exactly is it? And why does that rotating feature matter so much?

Let’s break it down.

What is a Swivel Eye?

A swivel eye is a metal loop that rotates freely around its connection point. Think of it like a ball bearing for hardware – the eye part spins 360 degrees while staying securely attached to whatever it’s mounted on.

The key word here is “swivel.” Unlike a fixed eye that stays in one position, a swivel eye moves with the load. This simple difference changes everything about how the hardware performs.

Main Advantages Of Swivel Eye

Here’s the big benefit of a swivel eye over a fixed eye – it prevents tangling and twisting.

When you attach a rope or chain to a fixed eye, any rotation in the load transfers down the line. This creates kinks, twists, and wear points that weaken your gear over time.

A swivel eye solves this problem. The load can rotate freely without affecting the rope or chain below it. Your lines stay straight and your equipment lasts longer.

Where You’ll See Them Most

These rotating connections show up in several key applications:

Marine rigging – Boat owners use swivel eye hardware for anchor lines, mooring systems, and sail rigging. The eye swivels 360° on the base and is great for tying off light loads, fenders, etc. Salt water and constant motion make the anti-twist feature essential.

Pet leashes – Dog leashes with swivel eyes let your pet move around without creating a twisted mess of leash. The swivel absorbs all that spinning and circling.

Lifting operations – Heavy-duty swivel eye bolts are essential in lifting and rigging applications, designed to turn during loading operations to protect equipment from stress-induced failures. They handle the rotation so your cables don’t.

Industrial rigging – Any time you need to connect moving parts while preventing line twist, swivel eyes do the job.

Types Of Swivel Eye Hardware

Swivel eyes come built into different types of hardware:

Swivel eye bolts – These threaded bolts have a rotating eye on top. Perfect for permanent mounting points that need flexibility.

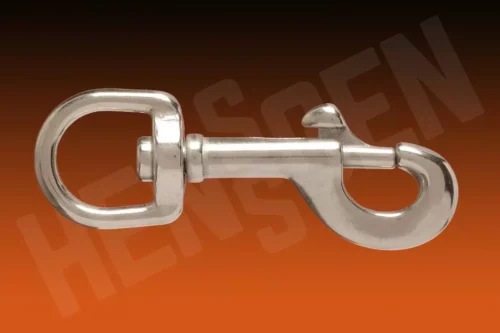

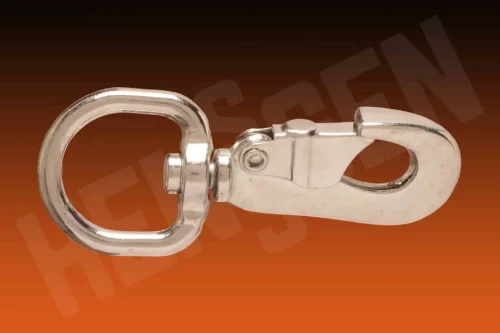

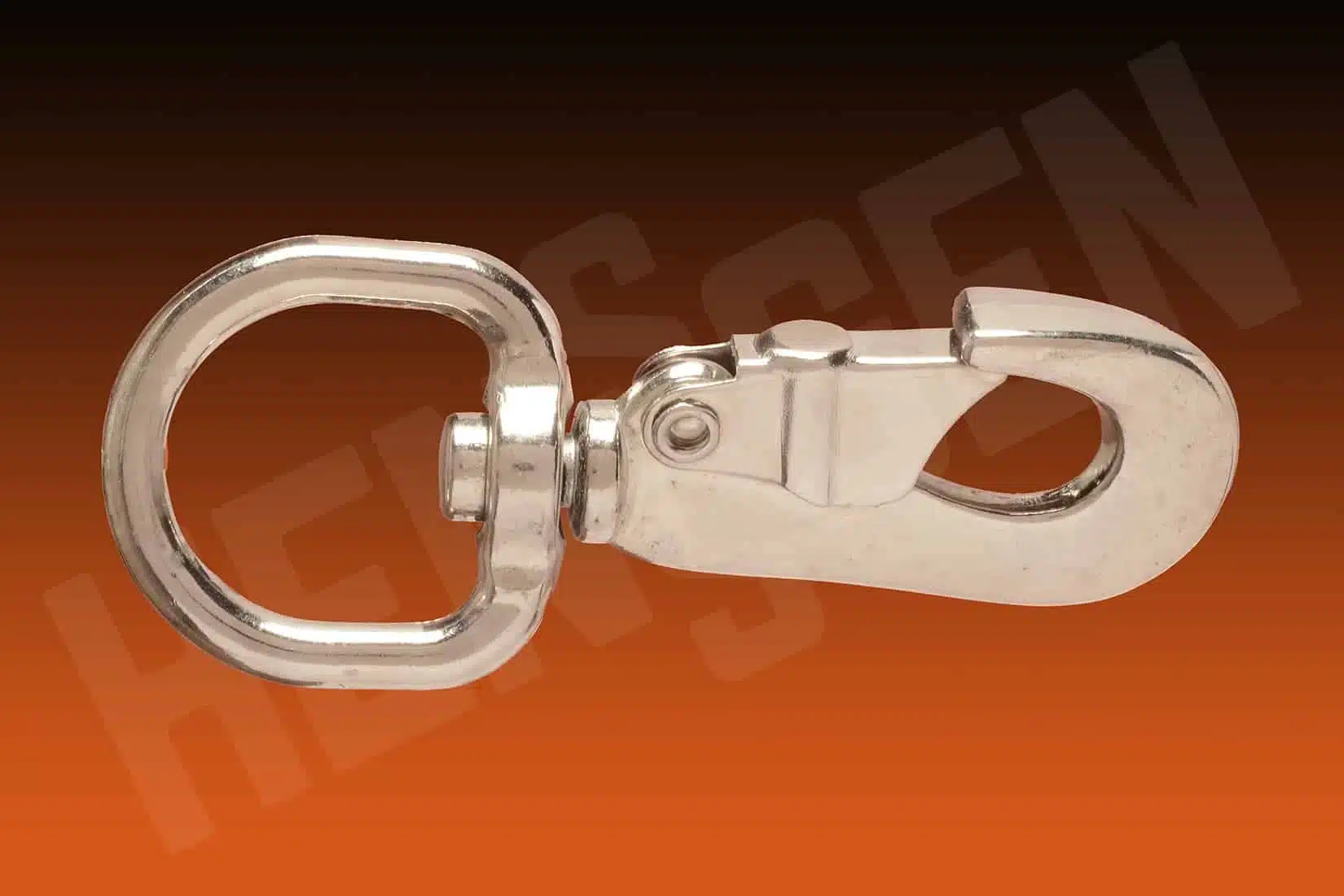

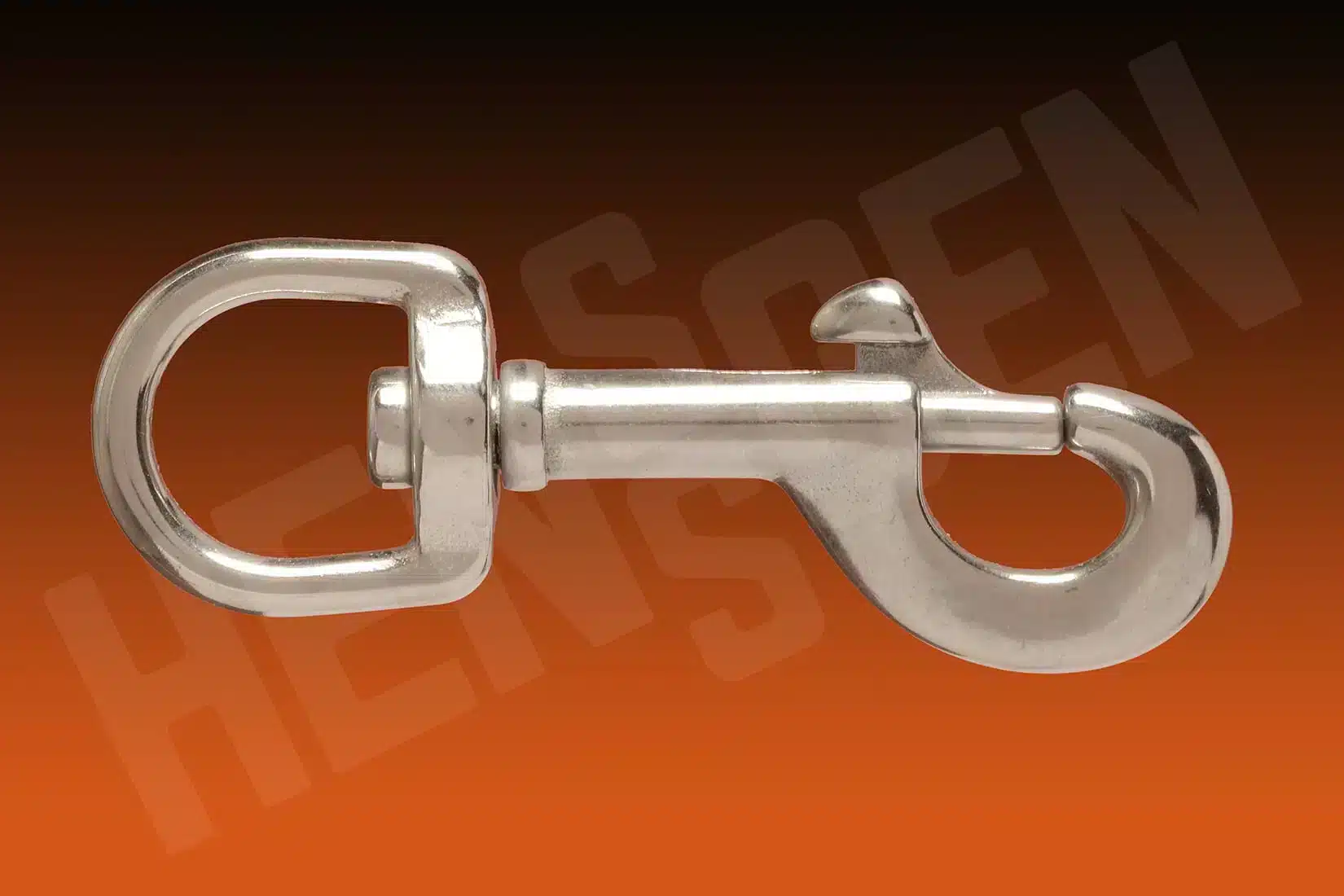

Swivel eye snap hooks – Combine the quick-connect feature of a snap hook with a rotating connection point.

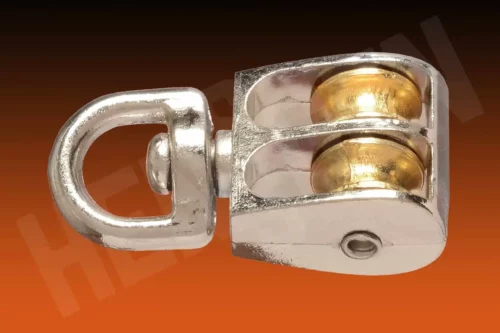

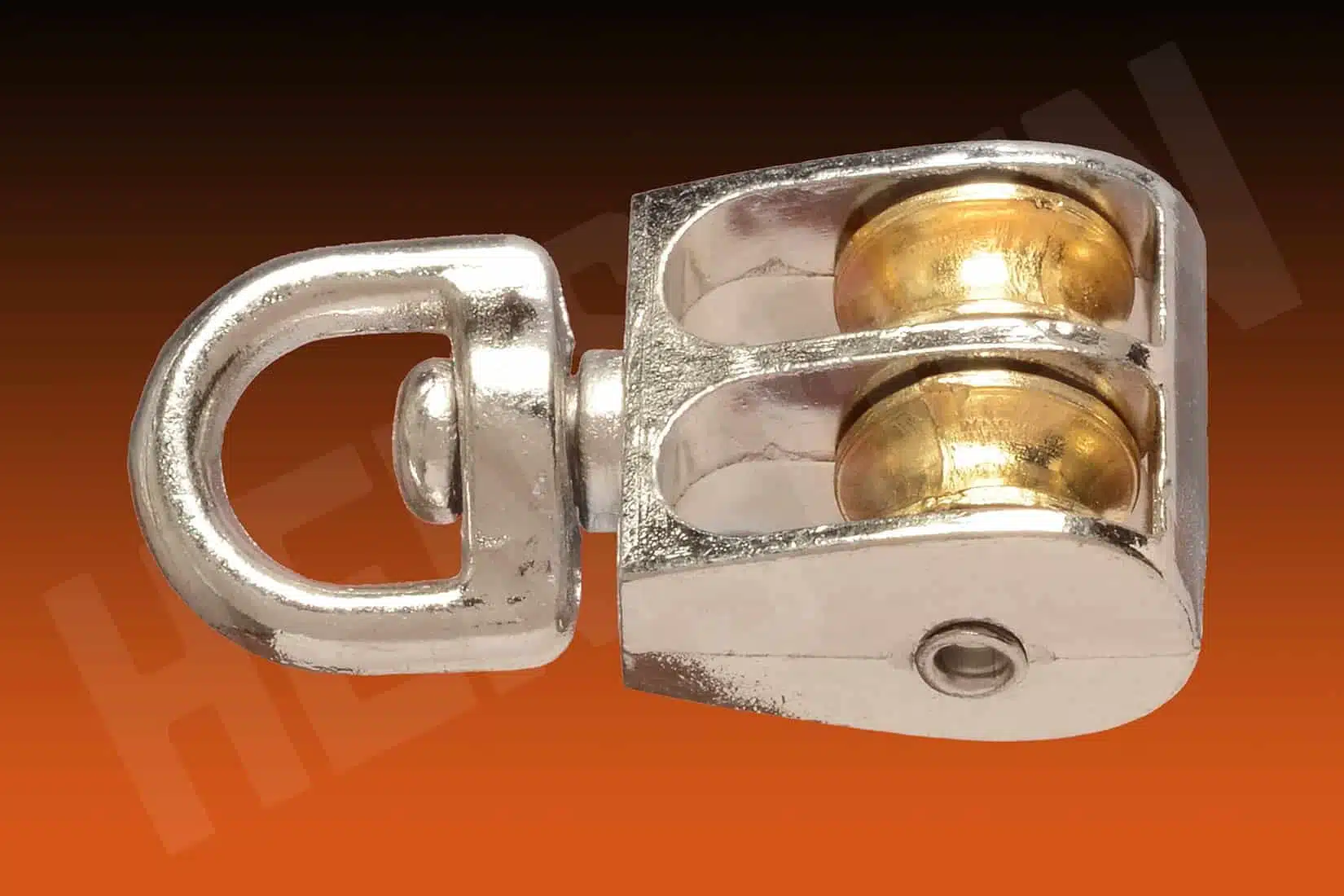

Swivel eye pulleys – Add mechanical advantage to your rigging while preventing line twist. Perfect for lifting heavy loads with less effort.

Swivel eye plates – Flat mounting plates with a rotating eye. These bolt to surfaces where you need a strong, flexible attachment point.

Eye-to-eye swivels – These have rotating eyes on both ends, letting you connect two lines while preventing twist in either direction.

Choosing the Right Material for the Job

The material you choose depends on your environment:

Stainless steel works best for marine applications. These stainless steel swivels are made from stainless steel for corrosion resistance and durability and are ideal for marine and industrial rigging applications. It handles salt water without rusting.

Galvanized steel costs less but offers good corrosion resistance for most outdoor uses.

Brass looks great and resists corrosion, making it popular for decorative marine hardware.

Die-cast zinc provides strength at a lower cost for lighter-duty applications.

Safety and Inspection

Not all swivel eyes handle the same loads. Always check the working load limit before use. Design factor 5:1 is standard for quality hardware – meaning it can handle five times its rated load before failure.

Inspect your swivel eyes regularly. Look for:

• Worn or damaged threads
• Cracks in the eye or swivel mechanism
• Excessive play in the rotating joint
• Corrosion that affects movement

Replace any hardware that shows signs of wear or damage.

When To Choose Swivel Over Fixed

Pick a swivel eye when:

• Your load will rotate during use
• You want to prevent line twist and kinking
• The connection point needs flexibility
• You’re working in marine environments with constant motion

Stick with fixed eyes when:

• The load stays in one position
• You need the absolute strongest connection
• Cost is the primary concern
• The application doesn’t involve rotation

The Bottom Line

Swivel eyes solve a simple problem – they let things rotate without creating twisted, kinked lines. That rotating feature prevents equipment damage and makes your rigging more reliable.

Whether you’re rigging a boat, setting up lifting equipment, or just want a tangle-free dog leash, swivel eye hardware keeps things moving smoothly. The key is matching the right material and load rating to your specific needs.

For quality swivel eye hardware that handles demanding marine and industrial applications, professional-grade snap hooks and rigging components provide the reliability you need. Choose hardware that’s built to last and rated for your specific application.

Remember – the small cost difference between fixed and swivel hardware pays for itself in reduced maintenance and longer equipment life. When rotation is part of your application, don’t fight it. Let it swivel.
